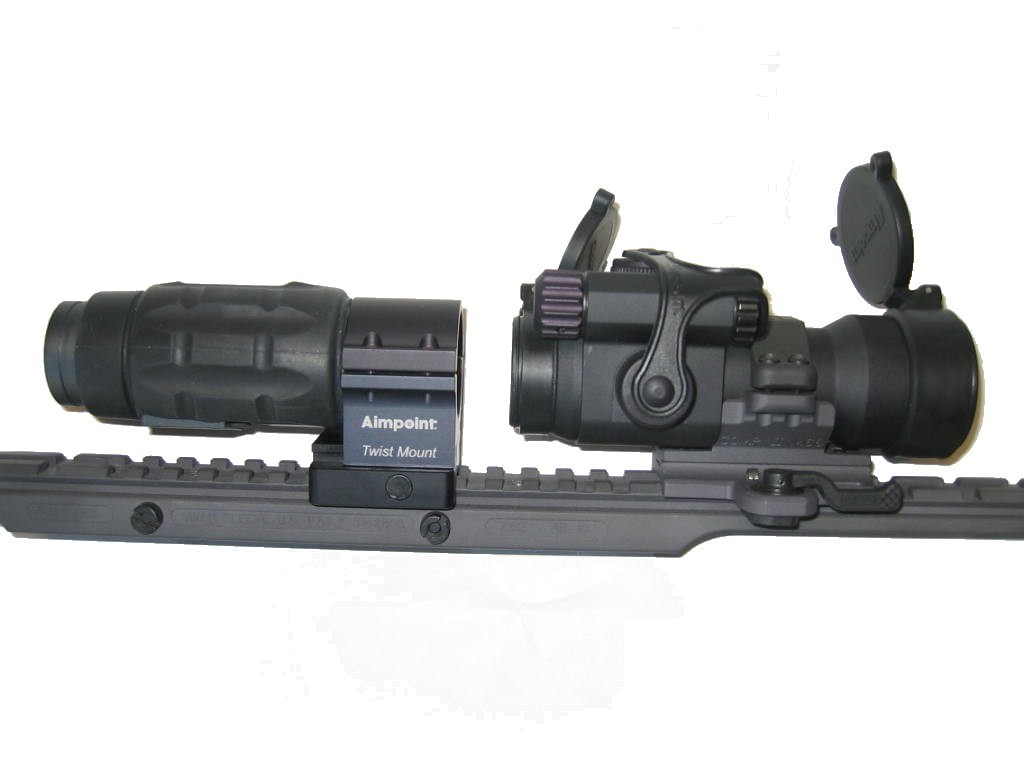

Aimpoint 3XMag (3X Magnification)
| OPTICAL DATA | |
| System | Magnifying Module |
| Magnification | 3X |
| Eye relief | at 5° FOV 40 – 90 mm at full FOV 60 – 65 mm |
| Reticle, size | - |
| Optical coating | - |
| ELECTRONIC DATA | |
| Battery Type | - |
| Battery Life, typical** | - |
| Switch, dot brightness | - |
| MECHANICAL DATA | |
| Material housing | - |
| Surface finish | Anodized aluminum, dark grey, rubber covered black |
| Material lens covers | - |
| Adjustment | - |
| Mounting | The 3XMag is provided with a 30 mm diameter tube (for mounting) and with 4 screw holes in the bottom surface for other mounting alternatives. |
| DIMENSIONS | |
| Length | 110 mm (4.3") |
| Width/height | 44x41 mm (1.7" x 1.6") |
| Ring width | 30 mm |
| Weight | 200 g (7,1 ounces) inc rubber cover |
| ENVIRONMENTAL DATA | |
| Temperature Range | -45° C - 70° C in operation and storage |
| Water resistance | 20 meters (67 ft) |
