(PEO-Soldier) for inclusion in the Approves Family of Flashlight list (AFFL).

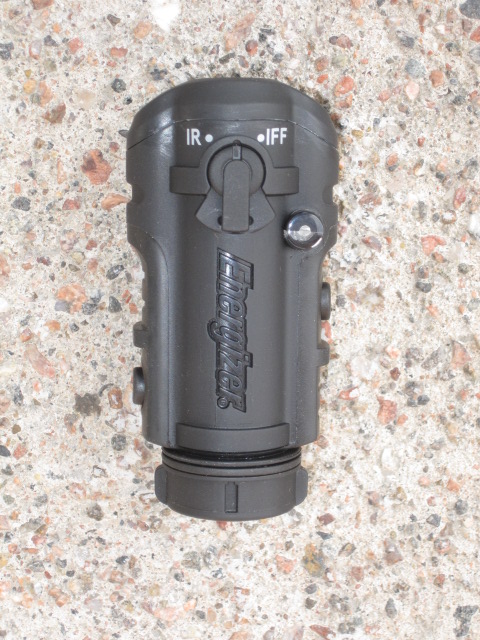

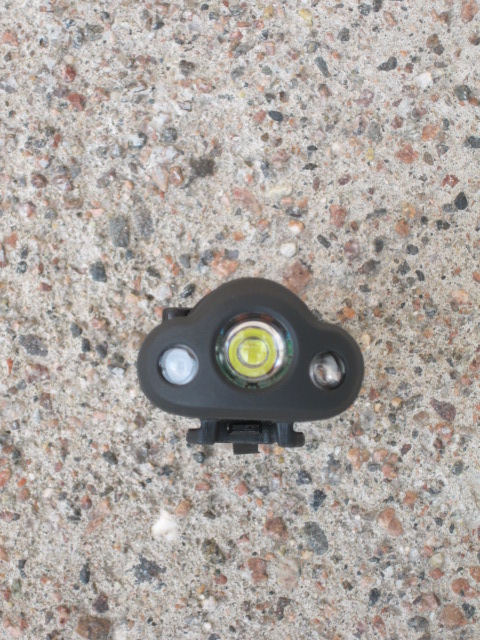

Energizer Tactical Helmet Light - NSN# 6230-01-574-8084
Energizer's Hardcase Tactical Helmet Light combines light weight, durability and function into one
sleek high-tech package. Designed to mount on your helmet for hands-free lighting, the waterproof
Hardcase Helmet Light provides four light modes: White main LED, blue LED, IR light, and IR IFF
strobe with a lockout switch to prevent visible light being turned on during IR operation
Specifications
-7,6cm long / 3,8cm wide
-Lightweight 3.5 ounces w/ battery
-Smart Switch Technology controls intensity of all visible light sources, provides “quick-extinguish” feature.
-IR and IFF modes prevent other light sources from operating
-Light can be rotated in 18-degree increments and locked into place
-Light easily detaches from helmet mount for use with other accessories e.g. MOLLE, Picatinny, Ops-Core Helmets
-Helmet Light, helmet mount, MOLLE vest mount and battery included
-13,4 g without batteries
-Temperature (Lithium) -40° C to 60° C
-Includes: One AA Energizer Ultimate Lithium battery w/15-year shelf life & helmet mount
Four light modes
-Bright white - High-intensity LED, 35 lumens on high. Dedicated on/off switch, High/Medium/Low settings
-Blue LED - For light-discipline and medical applications. Dedicated on/off switch, High/Medium/Low settings
-IR - Infrared light for use with night-vision devices. 880 nanometer rating
-IR Strobe - for Identify Friend or Foe capability, Blink rate is two per second
Hardcase Tactical Flashlight - NSN# 6230-01-574-8116
Energizer's second generation Hardcase Tactical Flashlight is a high-tech, rugged light source designed
for the battlefield but perfect for anyone that needs a tough, reliable light source.
Rugged enough to survive a 15 foot drop or immersion in water, the Hardcase Tactical Flashlight features
a swiveling head and 6 light modes: 70 lumen main white LED, red LED, green LED, blue LED, IR light and
IR IFF strobe. All 4 LEDs feature individual switches that provide 3 light levels and an IR lockout mode that
prevents the LEDs from being switched on when using the IR light.
Runs on two AA Lithium batteries (included) but the light will operate with just one AA (with reduced light output)
if necessary.
Specifications
-5,6cm wide (head) and 3,8cm (handle)
-Dependable: Crafted of advanced polymers and shock-absorbing over molds, rendering it virtually indestructible
-Survives a 15’ drop
-Total Internal Reflection shatterproof lens
-Rotating 180° head allowing light to be directed where needed
-IR & Lockout modes prevent other light sources from operating
-Smart Switch Technology controls intensity of all visible light sources, provides “quick-extinguish” feature
-Packaged w/ two AA Energizer Ultimate Lithium batteries, w/ 15-year shelf life, which provides maximum runtime
and relevant features:
-162 g without batteries
-Maximum output 70 lumens
-Temperature -40° C to 60° C
-Batteries are always inserted tips-in, eliminating the need for polarity indicators
-Light runs on two AA batteries, but is fully functional with one AA battery when necessary, one battery can be reversed
inside the battery chamber and stored as a spare
-Battery cap is secured to the light with a hinge so that it cannot be lost
-Built-in hold-fast clip for MOLLE attachment
Six light modes
-Bright white - High-intensity LED, 70 lumens on high. Dedicated on/off switch, High/Medium/Low settings.
-Red LED - For light-discipline and combat conditions. Dedicated on/off switch, High/Medium/Low settings.
-Blue LED - For light-discipline and medical applications. Dedicated on/off switch, High/Medium/Low settings.
-Green LED - For light-discipline and map-reading. Dedicated on/off switch, High/Medium/Low settings.
-IR - Infrared light for use with night-vision devices. 880 nanometer rating,
-IR Strobe - for Identify Friend or Foe capability, Blink rate is two per second.
