GT-14 Monocular with MIL EU Gen 3 Grade A Tube
                                                    N-Vision Optics

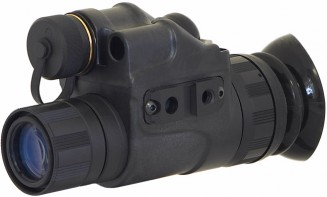

GT-14 is a tactical night vision monocular developed and manufactured by N-Vision Optics for the most advanced professional users who require superior quality, outstanding reliability, and unbeatable performance.

GT-14 features a unique ergonomic design that allows very comfortable single-handed operation and dramatically minimizes the probability of user errors in extreme conditions. The unit operates on one CR-123 battery to keep the weight to a minimum and guarantees reliable service at all temperatures. The monocular is equipped with an invisible to the human eye short range infrared illuminator to assist with tasks that have to be performed in complete darkness, such as map reading, equipment repairs, etc.

Available accessories, such as standard or flip-up face mask and helmet mount permit hands-free use of the GT-14. Rifle mount that fits Picatinny rail is also available for instances when GT-14 has to be used in conjunction with tactical night vision compatible sights. GT-14 can be used as a handheld device with optional 3X afocal attachment forl onger range observations.

GT14A is offered with the highest quality Military EU Generation 3 image intensifier tubes with resolution 64lp/mm typical. Each unit is shipped with the image intensifier tubetest data sheet.

Generation

 2+ and better

Magnification

 1x

Field of View

 40°

Objective Lens Focal Length, (mm)

 23

Objective Lens F Number

 1.2

Min. Focusing Range (ft)

 1.2

Eye Relief, mm

 30

Diopter Adjustment

 -4 to +5

Detection Range*, m

 200 to 350

Recognition Range*, m

 150 to 300

Battery

 CR123 Lithium (1)

Battery life, hrs (typical: With IR Illuminator)

 20

Battery life, hrs (typical: Without IR Illuminator)

 40

Dimensions (mm)

 115 x 66 x 49

Dimensions (in)

 4.5 x 2.6 x 1.9

Weight (g)

 320

Weight (oz)

 11

Operating Temperature (C)

 -30 to 52

Immersion

 2 meters for 2 hours

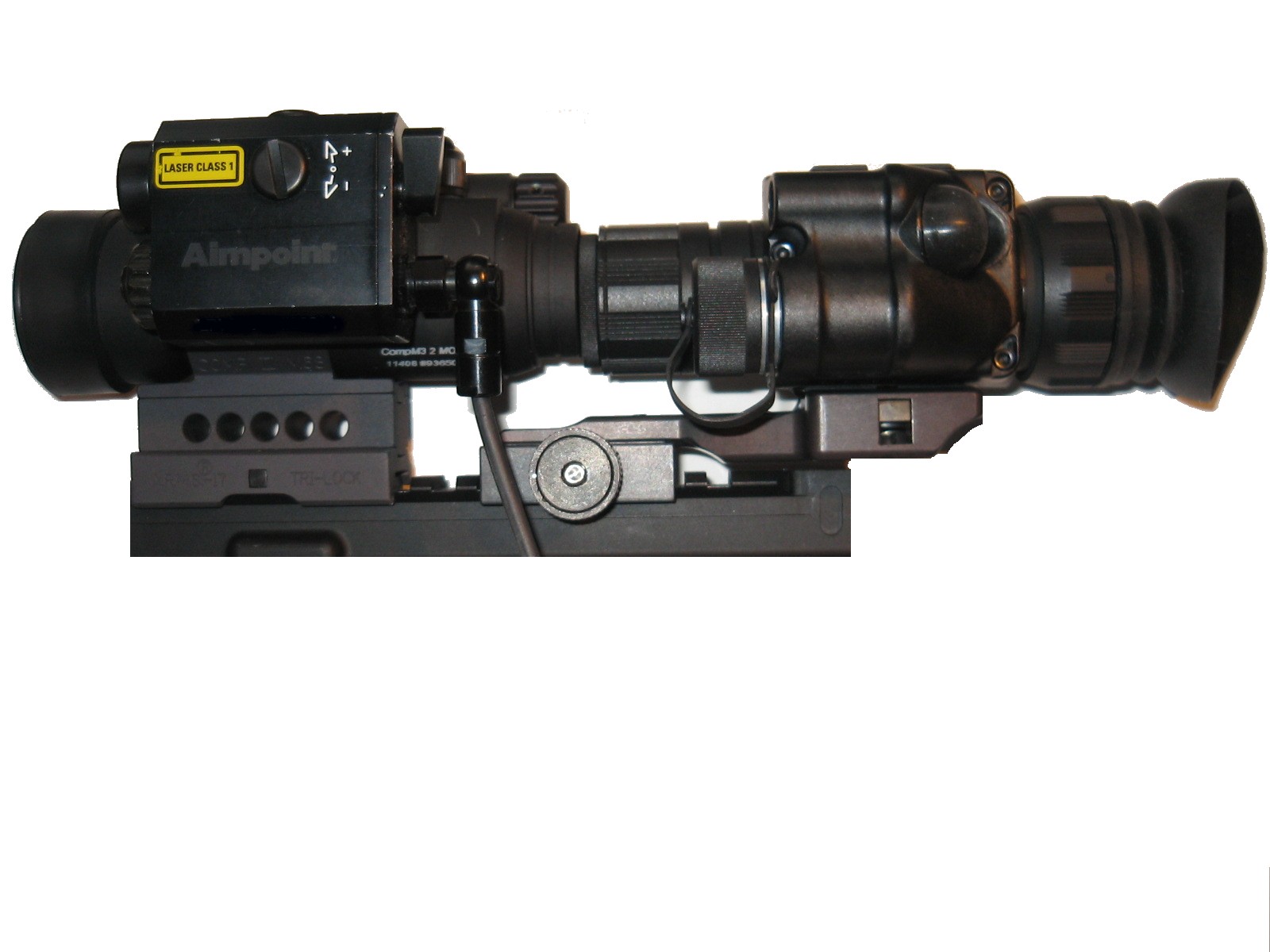

                               With Aimpoint M3 + Aimpoint LPI Infrared Laser
