F6 TAC 2 NIJ IIIA HELMET




Introduction

This is a specialised helmet for the modern combat soldier / Police user. It utilises the excellent
performance of aramid, bound in a thermoplastic resin matrix using unique process technology.
This is the key to achieving an excellent performance to weight ratio. The TAC II Helmet can be
worn for extensive periods of time, even in adverse conditions, with superior comfort.

The improved harness system not only improves comfort, balance and stress fatigue.

It is a 2 size helmet and available in different ballistic protection levels.

It is tough, durable and reliable and reflects state of the art design, materials and process technology.

Design

It is manufactured using the latest specification aramid fibre, bound in a thermoplastic resin matrix.
The unique process ensures a homogeneous, resilient structure ideally suited for ballistic applications.

The helmet has a smooth conformal shape with no protrusions, sharp contour changes or snagging
hazards. It is of low bulk and mass.

The edge is covered with a low profile neoprene rubber extrusion, which provides a forgiving and
neat finish. The hard sharp edge of the helmet moulding can soon look untidy with the day to day
knocks and bumps of service life. Also, it can cause damage to other less durable items.
The rubber edge trim prevents this from happening.

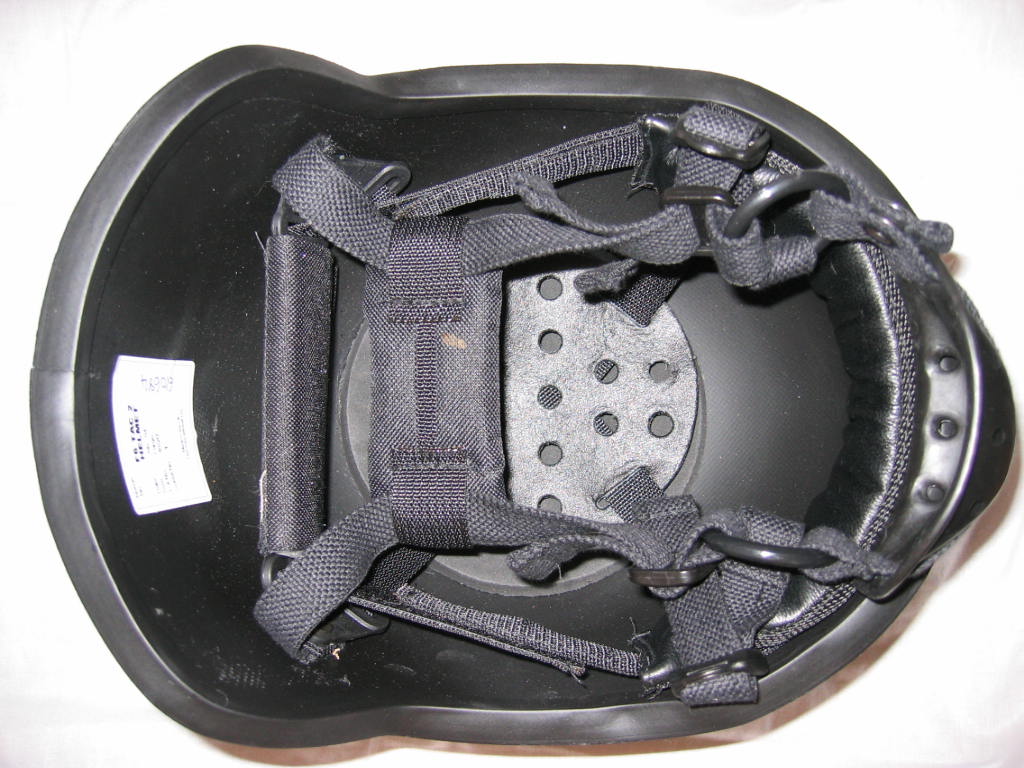

The helmet is fitted with a fully adjustable harness system that can be released and removed in just a
few minutes by unfastening 5 screws.

A comfort pad is fitted at the brow. This is covered with leather for perspiration absorption and
comfort. It features a low section for maximum compatibility with sighting systems.

The harness is a four-strap system with full adjustment for wearing height. It features a crown pad for
comfort. The Harness also absorbs shock in excess of the standards laid down in EN 397.

The nape pad is fully adjustable to accommodate a variety of head lengths. This also provides added
security of fit, resisting roll off during periods of high activity.

A three-point chinstrap provides optimum retention. It incorporates sufficient adjustment to allow for
gas masks and a large variety of head shapes and sizes. The adjusters are quick and easy to operate.
A chincup is integral with the chinstrap and is fitted with an easy clean plastic chin cup.

The chinstrap features a press stud fastener for simplicity and reliability.

                    Colour

The helmet is coated with an epoxy/polyurethane paint system. Standard colours are Black and Olive Drab.
Other colours are available on request.

Size

Two basic helmet sizes are offered: Medium and Large. The helmet will fit the central 95% head sizes.
Medium: 54 - 59cm
Large: 57 - 64cm.

Weight

The average weights of a TAC II helmet are as follows

                    Materials

All materials selected for this helmet are suitable for purpose. The aramid fabric is supported by a
certificate of conformance and ballistic test data from the manufacturers.

Protection Level

The 650 helmet is available with the following protection level:

                    Packing

For less than full pallet quantities, each Helmet is individually packed into bubble wrap bags to
prevent transit damage. For bulk quantities approximately 130 helmets are packed into standard
Euro Boxes and strapped onto pallets. Helmet carry bags are available on request

Warranty

The materials and workmanship are quaranteed for a period of 2 years.  The ballistic performance of
the helmets is guaranteed for 10 years from date of supply. This guarantee is subject to the helmets
being used in line with Use and Care instructions.

The performance guarantee may be extended if the helmets are in storage, subject to inspection
by of the storage facilities.

Quality Assurance

BS EN ISO 9001
