Nylon web straps at chest, abdomen, thigh, and calf. Adjustable footrests for vertical lifting. Frame is 5/8" steel tubing; cross braces and runners 3/16" x 3/4" flat steel. Basket is 18 gauge, 1" hexagon mesh netting.
DIMENSIONS: 80-1/2 " L; 8 " H
Chest: 22-1/2 " W; Abdomen 22 " W; Thigh 21-1/2 " W; Calf 20-1/2 " W
CARTON SIZE: 83" x 24" x 8"
WEIGHT: 14kg
LOAD CAPACITY: 680kg

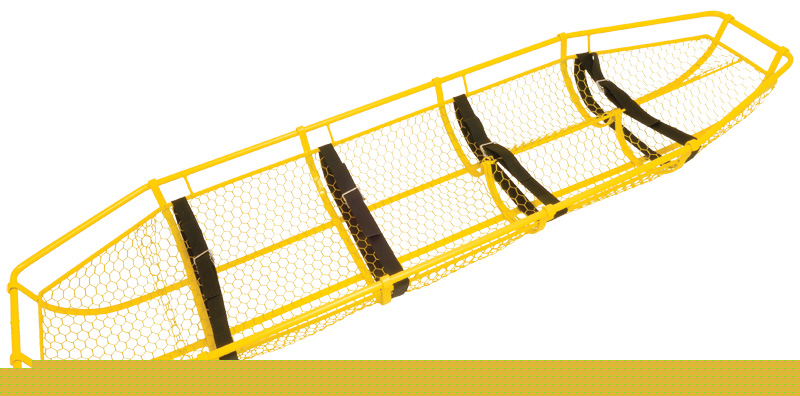

Plastisol Coated Splint Stretcher JSA-300-PC
Same as the JSA-300 with plastisol coating to make it rust proof. Straps
are included. Also available without leg divider (JSA-300 PCW)
DIMENSIONS: 80-1/2 " L; 8 " H
Chest: 22-1/2 " W
CARTON SIZE: 84" x 25" x 8"
WEIGHT: 14,5kg
LOAD CAPACITY: 680kg

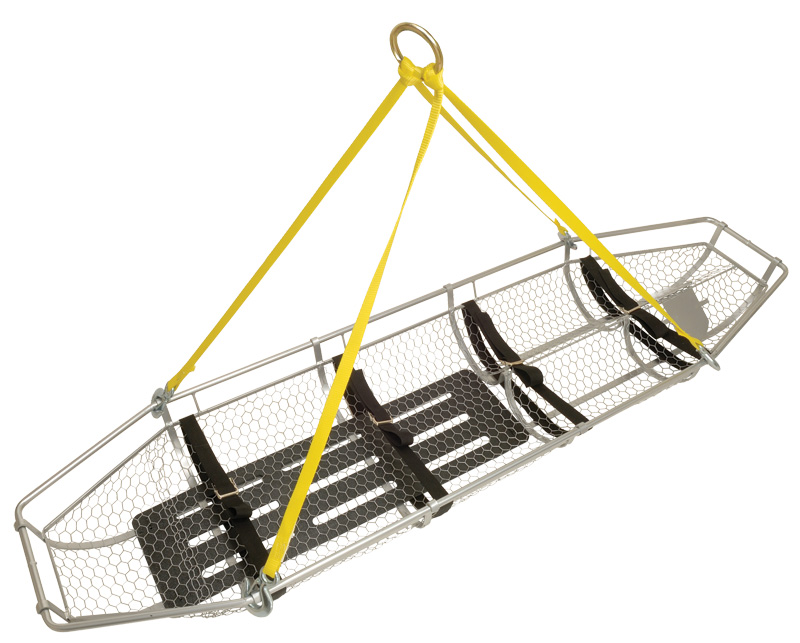

Lightweight Basket Type Stretcher JSA-300-A
Same as the JSA-300 with the addition of a plastic rack through back of trunk section and a strap adjusted foot rest.
WEIGHT: 14,5kg
Break Away Stretcher JSA-300-B
Designed to rescue injured persons from locations where lengthy foot travel is mandatory. The stretcher breaks into two halves which can be back-packed to the point of rescue and assembled in seconds. It can be secured to a standard back-pack for carrying. Three positive lock clamps secure two halves together. Four 60" web straps are standard. Stores in space 44" x 12" x 24".
WEIGHT: 15,4kg

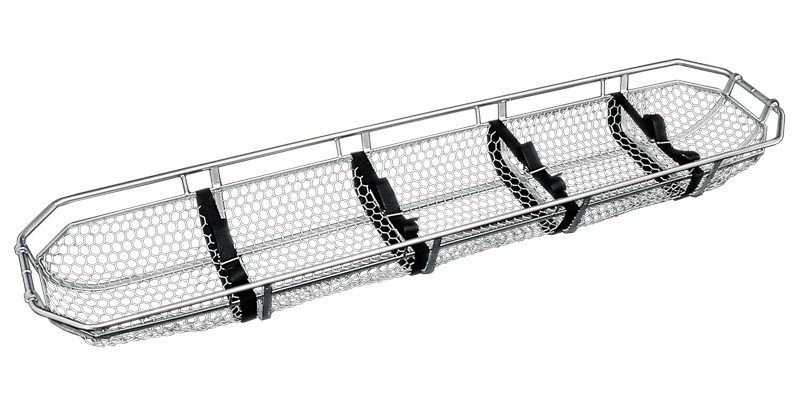

Confined Space Stretcher
JSA-300-CS
The new 19” width Confined Space Splint Rescue Stretcher has been designed for rescues where space is confined. With steel, all-welded rigid construction, which does not rely on the injured person to attain form or rigidity. Light in weight and ample in size. The basket is 18 gauge, 1” hexagon mesh netting. Nylon web straps for securing at chest, abdomen, thigh and calf. Supplemental accessories to facilitate special handling needs are available.
DIMENSIONS: 81-1/2" L x 18-3/8" W x 7-3/4" H
WEIGHT: 10,4kg
LOAD CAPACITY: 680kg

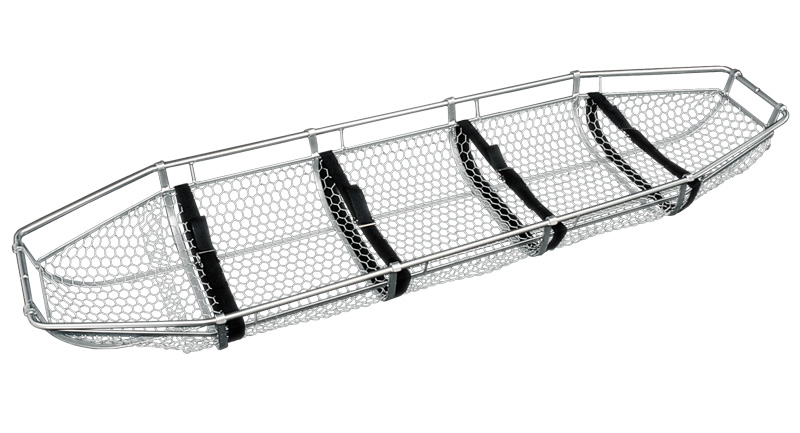

Without Leg Divider JSA-300-W
Designed to accommodate most standard 16” x 72” full length backboards. Also available with Plastisol coating (JSA-300-W PC).

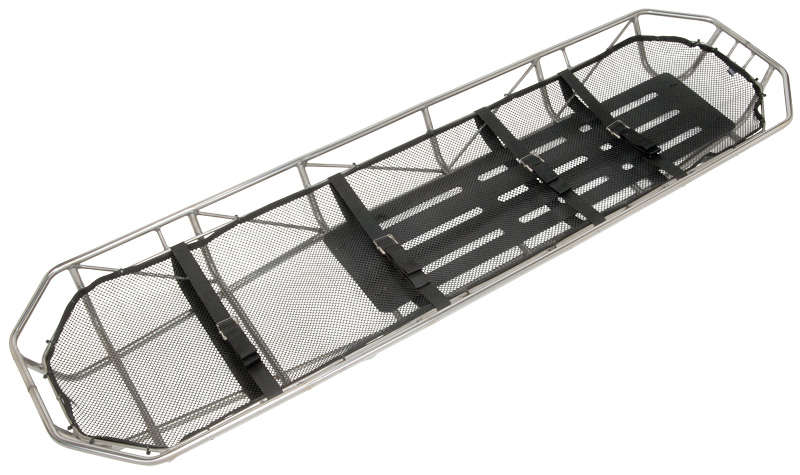

Rectangular Basket Stretcher MIL-8131-WM
Constructed of lightweight ¾” stainless steel tubing. Plastisol coated or
break‑apart.
DIMENSIONS: 84" L x 23-1/2" W x 7" H
CARTON SIZE: 84" x 25" x 8"
WEIGHT: 14,5kg
LOAD CAPACITY: 1135kg
