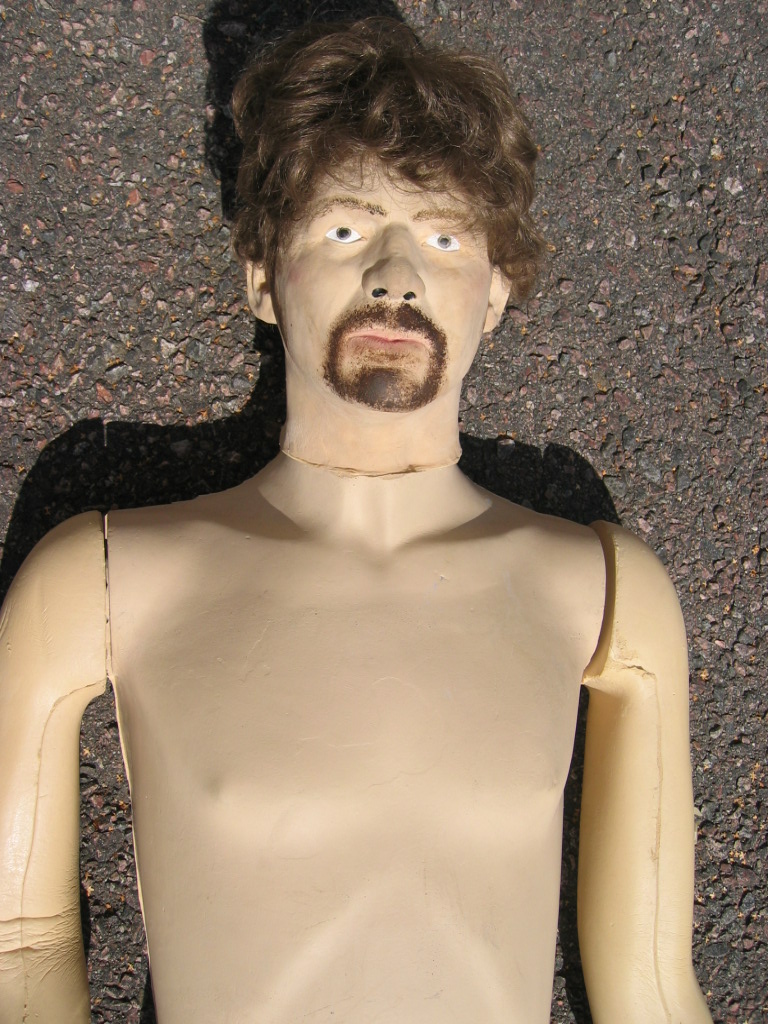

LIFE-SIZED 3-D FOAM TARGETS
Designed and manufactured in repairable foam to provide realistic, low cost, humanoid
shoot/no shoot scenarios.

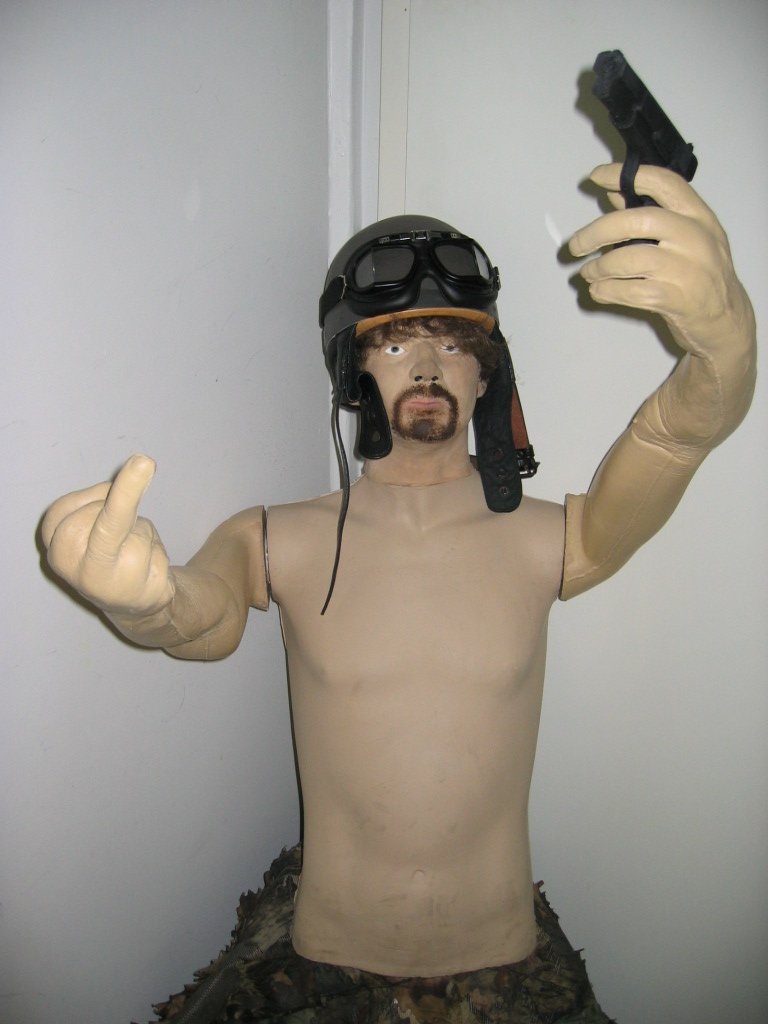

Bendable forearms, hands and fingers to grip objects. Upper arm swivels and head rotates
in socket.
Torso height is designed for sitting adequately into motor vehicles, aircraft seats, furniture etc.
-Male/female, different nationalities

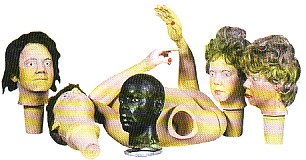

-Spare parts: Head (many "models"), arms (left or right), torso

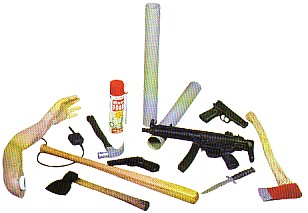

-Available objects: HKMP5, 9mm Browning, Hammer, Knife, Radio, Baseball Bat, Axe

Arms
The arms are a push fit onto the torso.
Arms bending/twisting can be done from just above the elbow down to the fingers, the
upper arm will not twist as the insert is solid and can only rotate about the shoulder joint.
Dressing
Dressing can be easily achieved especially if the arms are inserted into the sleeves
first and then applied to the torso.

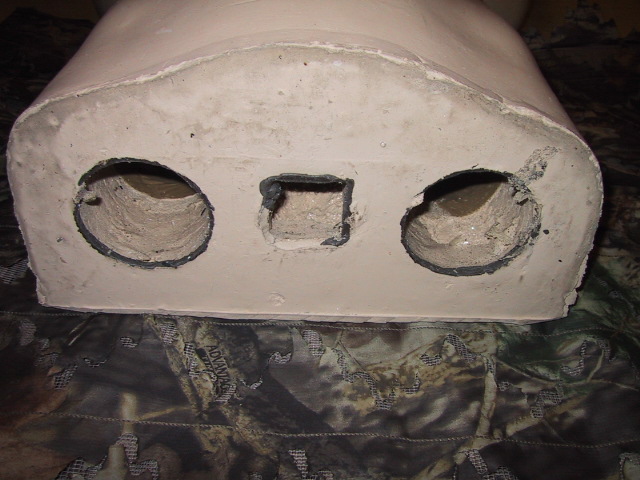

Plastic drain pipe can be inserted into holes provided for legs and trousers then fastened
around torso waist. Also in torso base is a square central hole for use in other applications.
Decoration
The heads can be altered visually by use of felt tip pens to put on moustaches, scars etc.
and aslo earrings can be inserted into the ear lobes.
Nominated female arms can have the fingernails "paintes" with red felt tip pen to add extra
realism if required.
Scoring
The foam torso will withstand woodscrews or self tappers which can be used to affix a piece
of card board onto the back of the target to cover your designated "kill zones" and as the
bullet passes through the foam and cardboard it will be able to be scored and patched.
Similarly thin aluminium sheet can be affixed and a hit sensor attached if required.
Knock-Down
To use the targets in a "knock-down" or reactive scenario, it's advisable to dress the
3-D Foam Target in your standard issue body armour, which will allow the target to fall
over upon bullet impact to the body armour.
Repairing
Bullet holes need to be repaired once they enlarge to about fist size by fixer repair foam.
