SPECTER Combat Optical Sights
Why choose between a red dot or telescopic sight when you can have both in the Blink of an Eye?
The SpecterDR™ dual fields-of-view (DFOV) sight provides both close quarter and precision fire
ranged capability ina single package.
Whether utilizing the red dot in 1x or 1.5x magnification or the ranging reticle in 4x or 6x mode, the
SpecterDR™ DFOV sight provides ultral-wide viewing angles for optimal situational awareness
and unmatched low-light performance. The SpecterDR™ DFOV sight allows the user to safely and
effectively transition in and out of building for close quarter or extended range without changing sights.
The 1x or 1.5x FOV provides a generous viewing angle (24° in the 1-4x and 16° in the 1.5-6x version)
and an extremely fast, "both eyes open" target acquisition capability.
The second FOV provides 4x or 6x magnified sight (FOV 6° & 4° respectively), a range compensating
reticle, long-range target identification and precision marksmanship capability.
The two unique fields-of-view are easily and quickly interchanged by means of the patent-pending, locking
lever mechanism on the side of the optical housing.
SpecterM145 SpecterDR 1x - 4x SpecterOS 3.0
3.4x OPTICAL SIGHT DUAL ROLE OPTICAL SIGHT 3.0x OPTICAL SIGHT
SpecterOS4x SpecterDR 1.5 - 6x
4x OPTICAL SIGHT DUAL ROLE OPTICAL SIGHT

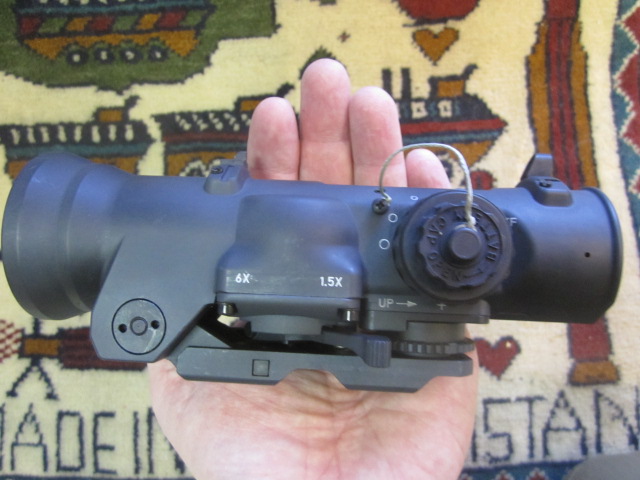

SpecterDR 1.5 - 6x
Specification
Fixed Magnification(s) 1.5X 6.0X
Backup Iron Sights Yes, Modular
Field of View 16° 4°
Aiming Point 1.5 MOA / 6 MOA Dot
Entrance Optic Diameter 42 mm
Reticle Pattern Ballistic compensated crosshair
Exit Pupil 8.0 mm
Illumination LED
Eye Relief 70mm”
Operating Temp -40 to +65 °C
Optical Axis Height 39mm
Storage Temp -40 to +85 °C
Zeroing Range ±60 MOA
Submersion >2 hours @ 66 ft
Zeroing Click Size ˝ MOA
Salt Fog >40 hrs. @ 5%
Mount Compatibility MIL-STD 1913
Chemical NBC & Cleaning
Mount Attachment A.R.M.S.
Levers Battery / Life DL 1/3 N (3000hrs Avg)
Weight With Mount 700g
Battery Cover Lanyard Retained
Length, Width, Height 183mm x 75mm x 67mm
Finish Hard Anodized (Class III)
1,5x With Red Dot 6x
