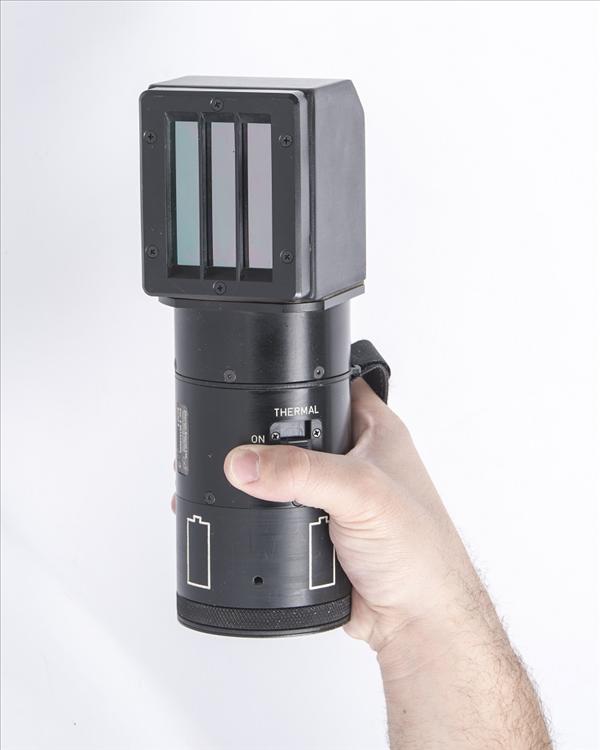

Thermal beacons are used for covert thermal signaling by military forces or para-military forces in a
variety of combat applications, primarily for detection by FLIR systems in the 3-12 micron ranges.
The addition of near–IR signaling for detection by Night Vision Devices produces a family of non-visible
beacon emitters combining thermal and IR wavelengths with the option of readily identifiable flash patterns.
The units are extremely small and lightweight, designed to be powered by batteries or vehicle power.
Recognition range: Using 8-12MCT camera at narrow field 2 km
Recognition range:Using 3-5 micron camera with InSb detector and 250mm lens 3 -5 km
Recognition range:Using any light intensifier system 10 km
Repetition rate 1.5 Hz
Radiation divergence Omni-directional
Operational voltage 12/24 VDC
Power consumption 35 W
Dimensions (d)80 mm X (h)246 mm
Weight 2 kg
Operational Temperature -200C up to +600C
Storage Temperature -400C up to +700C
