Online observation thermal imaging systems

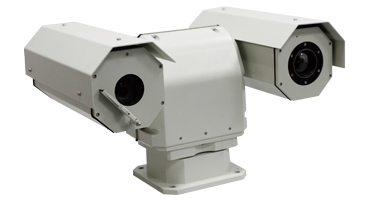

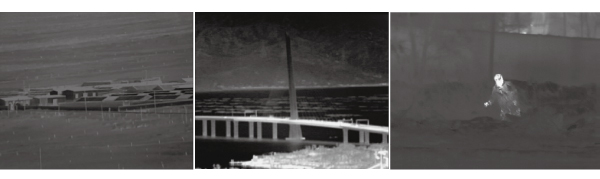

S Dual
◆ Two independent channels video output, thermal video and visualvideo or only
one
◆ Channel video output by way manually switch, orautomatically switch by light
condition
◆ Thermal camera could easily detect targets in the fog frost, rain frost and
night
◆ DDE function, improve detection ability
◆ Multi-definite modes, which meet different needs
◆ RS-485 control, supportPelco-D/P

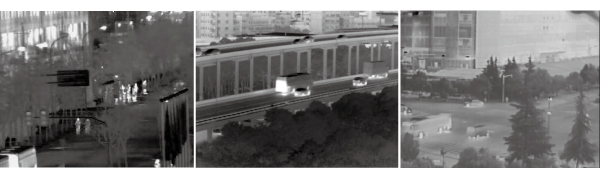

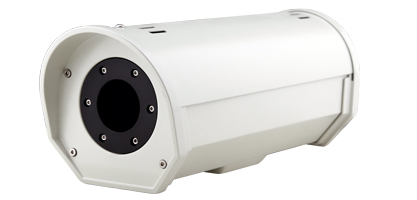

L Passive
◆ Passive thermal imaging technology
◆ 384x288 pixels uncooled amorphous silicon micro –bolometers
◆ Special functionof Gray level trigs alarm (alarm level options)
◆ Multi-definite modes, which meet different needs
◆ RS-485 control, support Pelco-D/P

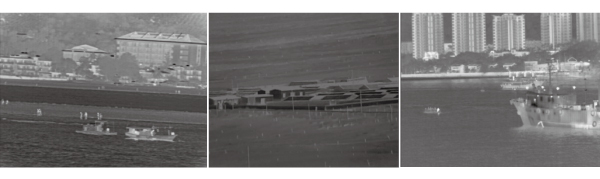

B100
◆ Two independent channels video output, thermal video and visualvideo or only
one
◆ Channel video output by way of manually switch, orautomatically switch by
light condition
◆ DDE function, improve detection ability
◆ Multi-definite modes, which meet different needs
◆ RS-485 control, supportPelco-D/P
◆ Detection humanat distance of 3 km
◆ Integrated Hosing with IP 66, all weather surveillance design

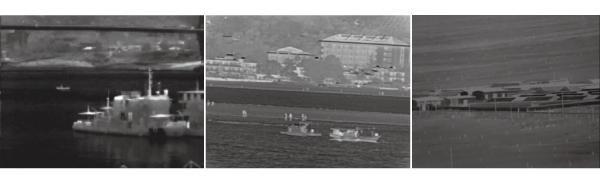

B150XP
◆ 384x288 pixels amorphous silicon micro-bolometers
◆ 150/60 mm lens design for two different FOVs
◆ Integrate with 43 X optical zoom visual camera to meet different detection
request
◆ Two independent channels video output, thermal video and visualvideo together
or only
◆ One Channel video output by manually switch, orautomatically switch by light
condition
◆ DDE function, improve detection ability
◆ Multi-definite modes, which mees different needs
◆ RS-485 control, supportPelco-D/P
◆ Detection human at distance of 5 km
◆ Integrated Hosing with IP 66, frozen after power off, compact design
