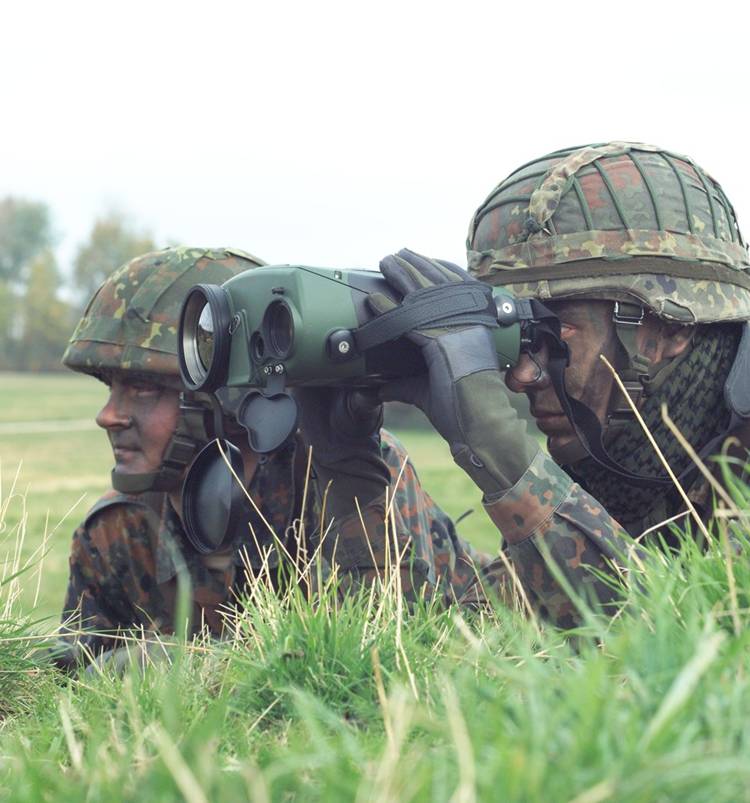

OPUS-H
                               OPtronic Uncooled Sensor – Handheld

Representative of a new generation of handheld target acquisition devices.

The OPUS-H has been developed for observation by day and night over large distances and can autonomously identify
both its own and the target's position in various coordinate systems.

                        OPUS-H offers the intelligent application of:
                        IR channel: 640 x 480 and 384 x 288 detector available
                        Visual cay sight channel: Detection of a tank over 9 km
                        NIR camera (optional)
                        §Eyesafe laser rangefinder
                        Digital magnetic compass
                        Integrated GPS receiver

State-of-the-art technology
Basic version (Day/ IR channel) up to full version (Day / IR channel, GPS, DMC, Laser, NIR camera)
Fully autonomous targeting capability
Excellent uncooled range performance
Real visual glass channel → no power consumption during daytime observation
Low power consumption

The main functions are controlled via the buttons on top of the housing.
All functions are controlled by a user-friendly menu, making quick access and ease of use reality with minimal training.
The day and night images, including overlaid target coordination are shown in the binocular display.

MIL-STD 810 and 641
Commercial AA batteries
271 x 226 x 60 mm
2,7 kg
