Rescue High Jack

Multifunction High Jack

The high jack has been used to secure, support and stabilize in rescue situations in the

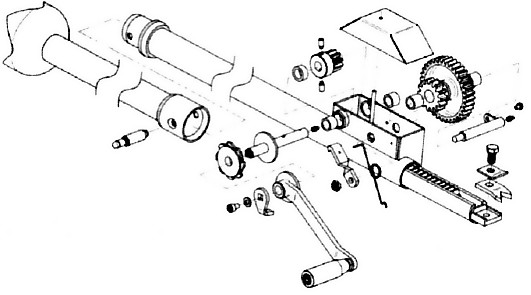

forestry sector for 30 years. It uses simple tooth and pinion mechanical design and has
proven itself in the field. Manufactured since 1977, this stable, reliable high jack is versatile
and adaptable for rescue operations in numerous conditions.

Technical data

Max lifting capacity: 2600 kg / 5726 lbs

Max extension: 0.63m / 25”
Length when transported: 1m / 39”

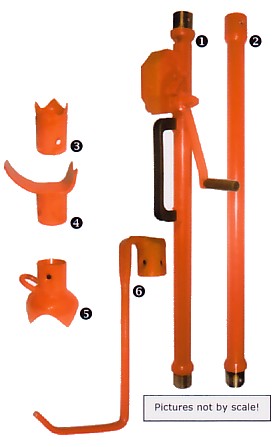

1. High Jack, 24 lbs / 11 kg

2. Extending tube, 25” / 1 m, 9.5 lbs / 4.3 kg

3. Adapter Crown, 1.6 lbs / 0.7 kg

4. Adapter U-hook 2.3 lbs / 1.0 kg

5. Movable base with ring for strap attachment, 2.5 lbs / 1.2 kg

6. Adapter L-hook, 4.1 lbs / 1.9 kg
