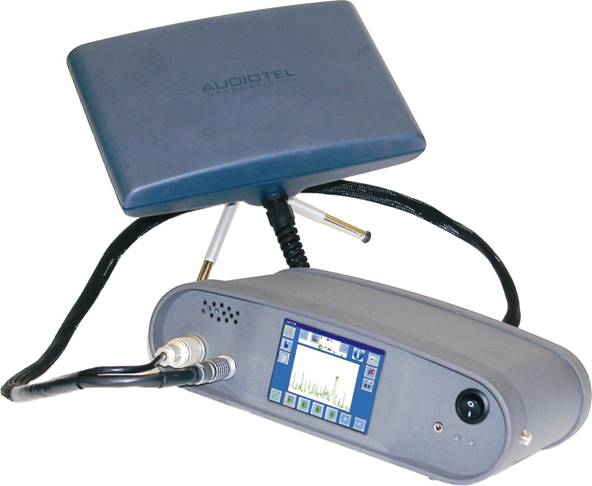

Scanlock M3 is the latest and most advanced Electronic Counter Surveillance Receiver
                                                                 Extension up to 30GHz
                           Cable Interface for
testing active telephone and network connections



Improved Frequency range
The frequency range of the Scanlock M3 Advanced system has now been increased to 10GHz which will cover the majority
of bugging threats + optional 30GHz extension.

Faster Scan rates
The scan rate of the Scanlock M3 has been reduced by a factor of 10 compared to the Scanlock M2. The system can now
scan to 10GHz in under 0.5s meaning that even the fastest burst type transmitters should not be missed.

Analogue and Digital bug detection

The Scanlock M3 Advanced system has the capability to detect and identify a wide range of commonly found radio signals;
GSM, DECT, WiFi, Bluetooth UMTS (3G) and Video.

Colour user interface
The Scanlock M3 has been designed for all levels of user, ranging from simple displays to more technically complex frequency
spectrum and time domain screens. The user interface is icon based and multi-lingual help facilities will be available.

The Scanlock M3 is a major advancement in the field of Technical Surveilance Counter Measures (TSCM). Enhancing the
industry standard Scanlock family, the Scanlock M3 offers the TSCM operator a multitude of performance enhancements
and operational benefits which can be employed to combat the threat posed by modern radio eavesdropping devices (bugs).

The Scanlock M3 includes all the tools necessary to detect, identify and locate suspicious signals within a secure area, real
time analysis of signals comes as standard and the integrated detector channels (Advanced system) can identify the majority
of telecomms signals which will be present in the modern office environment.

The icon based user interface has been designed for all levels of operator. Screens range from simple lists of detected signals
to more complex spectrum analysis and time domain displays.

The Advanced Analysis software (Advanced system) offers the operator remote capabilities along with real time complex signal
analysis and the facility to store and annotate sweep data.

M3 Basic Model
Predominately a Search Tool

Also offers Basic Analysis displays

M3 Advanced Model
Predominately an Analysis Tool
Enhanced Frequency Range
Burst detection/identification capabilities
Offers advanced analysis tools via laptop control


Search tool


Scanlock M3 - User Benefits
  • Wider frequency range to cover the vast majority of threats (Advanced system)

  • Improved scan rates to capture the fastest burst type threats

  • Analogue and digital (Advanced system) detection capabilities to cover the majority of threats in the modern radio environment

  • Ergonomic packaging design, smaller lighter and easier to use

  • Multi use antenna to enhance system performance to 10GHz (Advanced system)

  • Network connectivity for remote control and monitoring (Advanced system)

  • Desk-mountable to provide continuous monitoring during meeting

  • User friendly icon based user interface with multi-lingual help facility

  • Graphical spectral analysis software for signal analysis, remote access and historical data storage (Advanced system)

M3 Advanced Benefits
Extended harmonic Receiver band coverage to 10GHz + optional 30GHz extension.
Near DC to 10GHz Broadband Burst Detectors.
Burst Detectors Cover worldwide mobile communication bands.
Burst identification Algorithms for GSM, UMTS, WiFi, Bluetooth, DECT, Video.
Analysis Software allowing detailed examination of signals, storing JPEG pictures of signal profile for report purposes.
Ability to Capture data for New burst transmissions to allow Audiotel to write detection Algorithms.
Ability to Remote monitor Rooms via an Ethernet link.

M3 Advanced Technical Specifications

Harmonic Receiver
Near DC to 10GHz in 4 Bands + optional 30GHz extension.
Sensitivity Better than -50dBm
Dynamic range  greater than 50dB

Multi-Functional Head
Broadband Detectors
10MHz to 10GHz
Sensitivity Better than -50dBm
Dynamic range  greater than 50dB
ISM Band Detectors
2.4GHz and 5.8GHz International bands
Sensitivity Better than -50dBm
Dynamic range  greater than 50dB
3G, GSM Detectors
»Covering Worldwide mobile communication bands
»Sensitivity better than -50dBm
»Dynamic range greater than 50dB

Man machine interface same as Basic model
Analysis software (PC)
Supplied with a Monopole Antenna, Multi-functional antenna, Test transmitter, Manual and accessory kit.

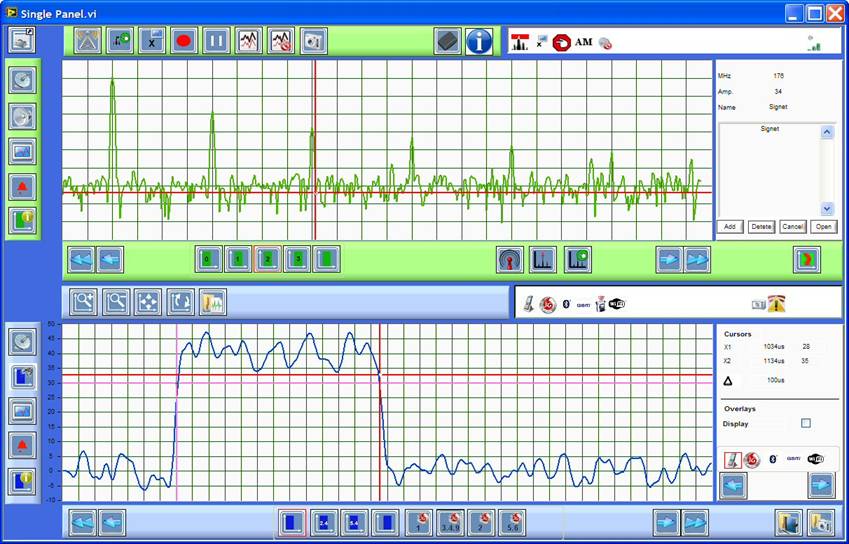

Analysis Software (PC) Features
Add Tags, markers and notes
Overlay Ideal Signal formats to aid signal identification
Send and save specific Job configuration data to unit
Time Elapsed Record facility
Display format options
Spectrum
Time Domain
Difference
Waterfall
Channel Occupancy
Zoom
Decimate in time domain
