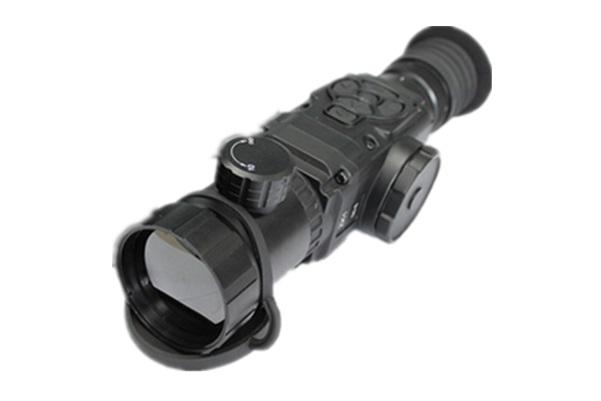

Thermal Rifle Scope 384*288
or 640*480
Thermal Rifle Scopes are a solid state, uncooled,
long-wave infrared, magnified
dedicated weapon scope intended for day and night engagements without the
need to remove the sight from the rifle. And they are advanced and great helpful
equipment for hunting lovers. Thermal image can cut through total darkness, haze,
dust,fog and smoke to detect target, and help to see through various animal
camouflage. With proper mount with hunting gun like 1913 picatinny rail, the
thermal image also helps to shoot the animals.
Features:
• 3 years warranty
• Multiple Color Modes
• 2.5X or 4X optical lens
• E-zoom 5-10X or 8-16X electronic magnification
• Light weight and compact design
• Waterproof and shockproof
• 1913 Picatinny Mount
Technical Details:
Type |
Uncooled |
Sensor (microbolometer) |
640x480 px or 384x288 px |
Material |
Amorphous silicon |
Image Size (output resolution) |
800x600 px |
Frame rate |
50 Hz |
Display |
Color OLED matrix, SVGA< 800x600 |
Thermal Sensitivity |
<50 mK |
Lens System |
50 mm |
Field of View (H x V) |
12.4x9.3 or 7.5x5.6 |
Eye Relief |
52 mm |
Optical Magnification |
2.5X or 4X |
Objective lens Diameter |
50mm |
Distance of the human detection |
1550 m or 1200 m |
Distance of the human recognition |
620 m or 360 m |
Distance of the human identification |
370 m or 300 m |
Reticle Color |
White & Black |
Brightness adjustment |
Manual |
Sharpness adjustment |
Automatic |
Video out |
Yes (optional) |
Start up time |
<5 sec |
Polarity control |
White hot / Black hot / Multiple Color Modes |
Environmental Rating |
Waterproof / Dust proof |
Battery type |
CR123 battery type |
Battery Life |
6 hrs |
Mounting bracket |
Picatinny rail |
Low Battery Indicator |
Yes |
Dimension |
235x74x66(mm) |
N.W. |
0.76kg |
Warranty |
3 years |
