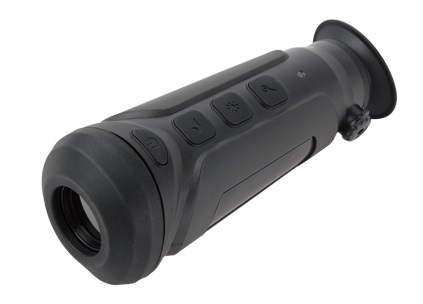

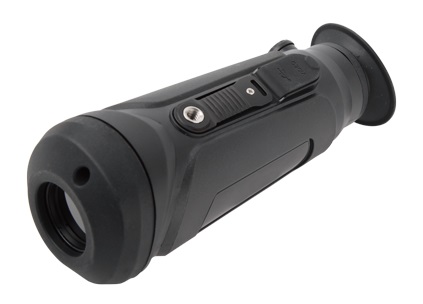

UNCOOLED MONOCULAR 384*288 / 640*480
• Small Size, One Hand Operation
• Watch the live video , record video and taking picture with your cell phone
through WIFI connection
• One meter drop resistant
• Hot spot tracking
• Shortcut key operation, Fast and easy operation
25mm lens, Black Hot / White Hot / Red hot imaging. wifi function can connect
with cell phone
directly to record video and save photo
Detector |
Detector type |
Uncooled FPA Microbolometer |
|
Array size/format |
384*288(DLC384) |
640*480(DLD640) |
|
Pixel size |
25um |
17um |
|
Wave range |
8~14um |
||
NETD |
60mk |
||
Lens |
Lens options |
9、18、37、50mm |
|
Focus |
Fixed, Athermal lens, |
||
F No. |
F1.1 |
||
Camera Features |
Frame Frequency |
50/60Hz |
|
Gian |
Manual adjustment(0~100) |
||
Brightness |
Manual adjustment(0~100) |
||
Polarity |
White Hot / Black Hot |
||
Auto NUC |
OFF/short/Mid/Long |
||
NUC mode |
Internal / external |
||
E-zoom |
1X/2X /3X/4X |
||
Language |
English |
||
Color palette |
Red Hot/iron /rainbow/Amber/black hot/white hot etc |
||
Heat Threshold |
0~100 |
||
Image enhancement |
Yes |
||
Simulate Keys |
M,:MENU |
||
+,:UP |
|||
-,:DOWN |
|||
C,:NUC |
|||
S:Cimbination Key, Enter into menu |
|||
Video |
Output resolution |
D1/CIF |
|
FPS |
25fps |
||
Video |
Compress |
H.264/MJPEG |
|
video stream |
Three streams ,Max |
||
Bit Rate |
32Kbps~2Mbps |
||
Network |
Storage |
Micro SD, Max64G, local ,NAS(NFS,SMB) /FTP |
|
Alarm |
Tripwire, intrusion, motion detection, loss network, IP conflict, storage full /error |
||
Remote |
set Parameters of the camera, firmware update etc |
||
Download video |
|||
Visit with WEB explorer |
|||
Language |
English as default |
||
Protocal |
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP |
||
Compatibility |
ONVIF, CGI, |
||
Interface |
Ethernet |
RJ45,10M / 100M |
|
Analog video Output |
PAL, BNC |
||
Micro SD |
Internal Micro SD ,Max.64G |
||
Phyicicle |
Operation temperature |
-40℃~ +60℃ |
|
Storage temperature |
-45℃~ +70℃ |
||
Humidity |
0~95% |
||
Power consumption |
<10W |
||
Power Supply |
DC12V or POE |
||
Encapsulation |
IP66 |
