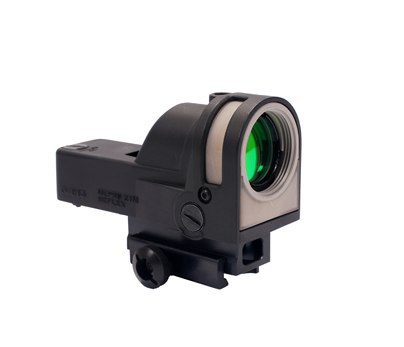

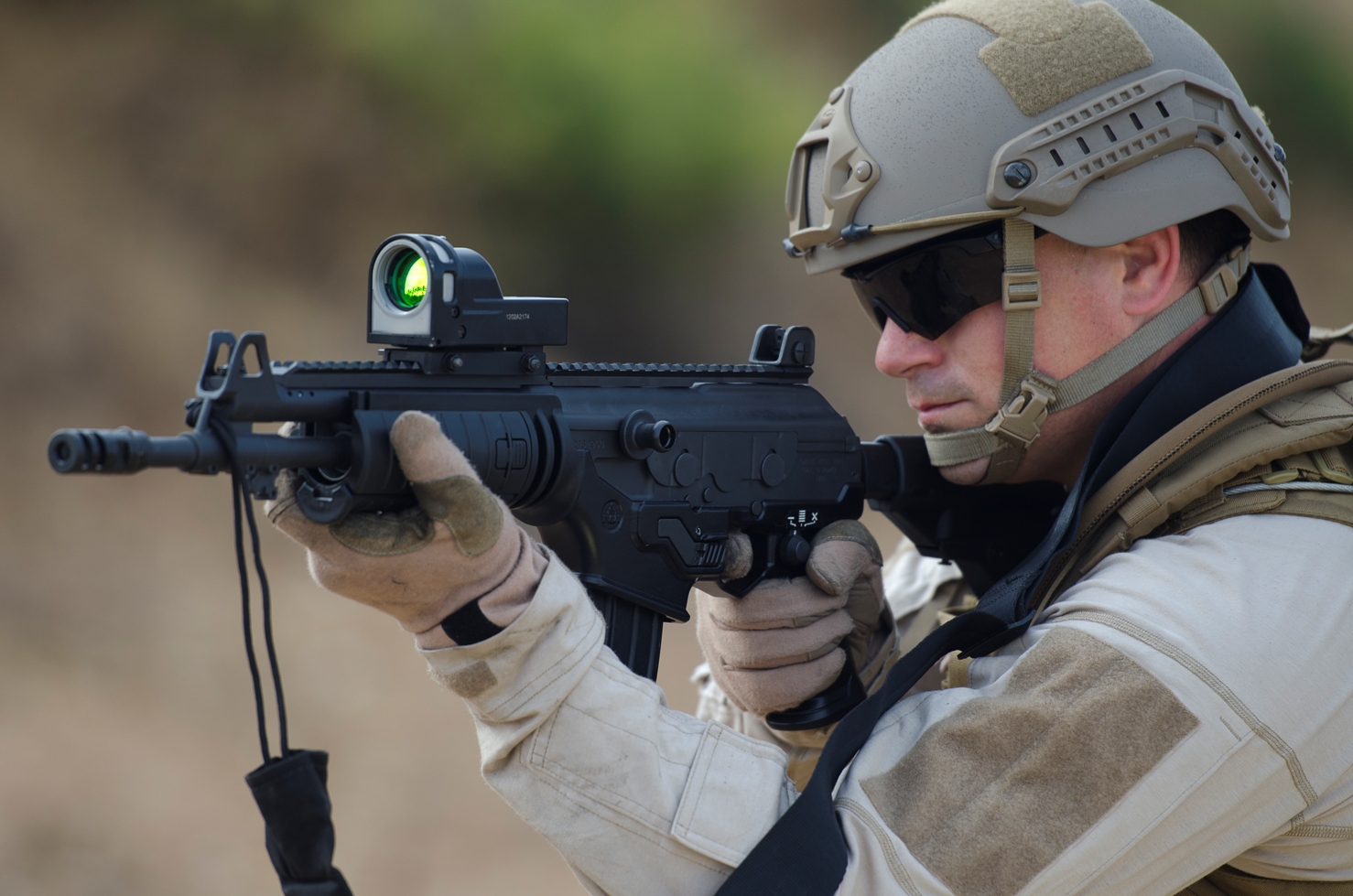

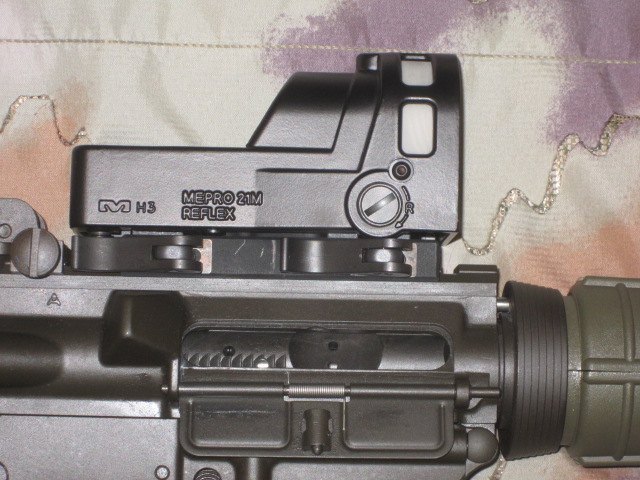

MEPRO 21 Day / Night Illuminated Reflex Sight



The MEPRO 21 provides instant, all-light aiming capability, without batteries. Designed through close collaboration with
Israeli Special Forces, the MEPRO M21 is battle proven, simple to use accurately and totally reliable.

MEPRO 21 offers a large 30mm diameter lens which allows rapid target acquisition with both eyes open. This was the
first reflex sight in the world designed for close quarter combat, and it can be ordered with optional reticles – dot, triangle,
open-x and bullseye.

Illumination of the aiming point is achieved by a fiber optic collector system during the day, and by a miniature self-powered
tritium light source at night. Transition between the two systems is instantaneous and automatic to assure good contrast
between the aiming dot and the target area.

The MEPRO 21 reflex sight offers users the ability to acquire targets accurately at any range, in any situation, with both eyes open.

The MEPRO 21 is also designed to work in tandem with a magnifying scope like the MEPRO MX3 - mounted behind it for
ultimate accuracy.

Advantages
- Always ready for action – no batteries or switches.
- Aim & shoot faster than ever - with both eyes open!
- Self-illumination means always available
- Operates under all weather and temperature conditions
- Large 30mm diameter lens assures large FOV, weight 372g
- Rapid target acquisition means quicker shooting in urban areas
- Quicker shooting in urban areas and rapid target acquisition
- Can be ordered with optional reticles – dot, triangle, open-x and bullseye
- Effective use of sight under extreme conditions such as bad weather, firing after physical stress and firing under pressure

- Reticle options: Triangle,  "X" Shape, Bull's Eye, 4.3 MOA OR 5.5 MOA

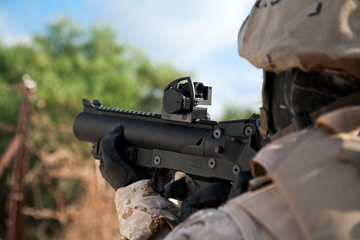

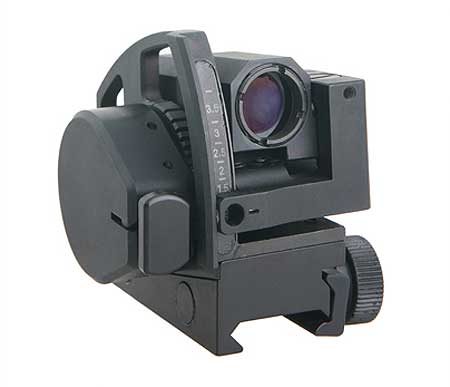

MEPRO GLS Self-Illuminated Optical Sight for 40mm Grenade Launcher



Meprolight has solved the aiming limitation by developing the first and only optical reflex sight for 40mm Grenade Launchers.
The MEPRO GLS sight functions under all lighting and weather conditions, and offers soldiers the ability to accurately aim and
hit targets with both eyes open.

The dual self-illuminated optical sight is a real technological breakthrough. The compact unit mounts onto the Picatinny top rail –
on its own or behind the MEPRO M21 Reflex Sight and can also be mounted onto a side adapter (9 o'clock). It is adjustable for
both windage and elevation.
During the day, a light collector tube concentrates available ambient light into a dot and projects it onto the sight lens. At night,
a small tritium light source supplies the light for the dot.

Advantages
- Rapid Target Acquisition - High First Hit Probability
- Built-In Drift Compensation: 50-400m
- Always Available - No Batteries
- Numerous Mounting Options
- Compact & Lightweight 250g

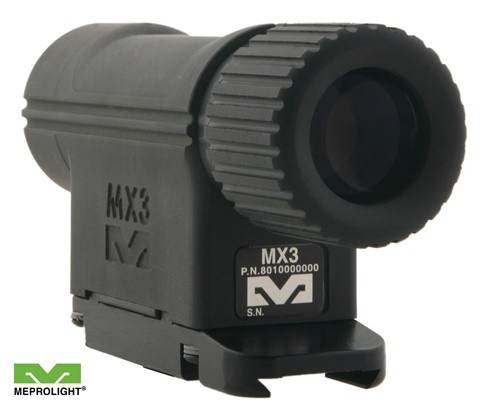

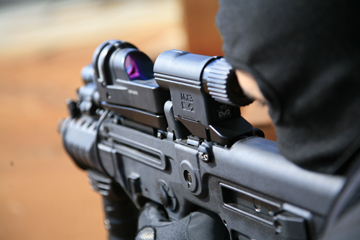

MEPRO MX3 X3 Magnifying Scope



The MEPRO MX3 provides a decisive operational solution for any soldier in the field, as well as for military snipers. Its X3
magnification enhances the precision and effectiveness of reflex sights such as MEPRO 21 and MEPRO MOR.
Manufactured to the highest military standards to assure years of reliable operation under all field conditions, the MEPRO MX3
extends shooting range with no need to re-zero the sights. Any soldier can use it easily and benefit from its advantages.

The MEPRO MX3 magnifying scope attaches to any standard MIL-STD-1913 Picatinny Rail behind a reflex sight, by means of
a quick release adapter. In adverse situations it can also be attached behind the regular metal sights.

Advantages
- Compact, lightweight and rugged
- Simple to attach – doesn't interfere with firing
- Does not require zeroing
- Attaches to weapon's standard MIL-STD-1913 rail
- Wide field of view – allows getting into firing position quickly
- MX3 increases the range of effectiveness of the weapon with a reflex sight
- MIL-STD-810 qualified
