NOA. Family of Uncooled Thermal Weapon Sights

-High-performance observation under harsh environmental conditions.
-Precision target engagement at ranges reaching 1,000 meters.
-Cutting-edge Fire Control System (FCS) featuring automatic ballistic compensation based on range, type of weapon & ammunition, etc.
-In Field Of View (FOV) leveling indication.
-Laser Range Finder (LRF) interface for automatic target range acquisitions.
-User friendly interface.
-Integrated capturing and storage of still images.
-Wired transmission of real-time streaming video and video recording capabilities.
-Upload and Download capabilities of data and images using USB.
-Low energy consumption, up to 8 hours of continuous operation.

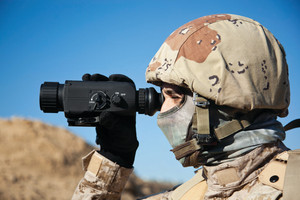

NEW NOA NYX Thermal Sight



NOA NYX, a lightweight, un-cooled thermal weapons sight, weighing less than 1kg. Created to address the issues of precise target
detection and engagement in dust, smoke, and complete darkness, the NOA NYX uses proven high-resolution microbolometer technology,
to ensure clear and consistent results. MIL-STD-810F.

The NOA NYX can be used as a hand held observation device or fitted to light machine guns, assault rifles and submachine guns, using
the MIL-STD-1913 rail system. The system's long-range capability and light weight also make it suitable for sharpshooter rifles with a x2
and x4 digital zoom, having the ability to detect man sized targets at ranges up to 900m. The NOA NYX can store up to 3 user configured
sighting reticules.Using 4 AA batteries allowing for up to 7 hours continuous operation, the NOA NYX can be quickly brought into action with
a warm up time of less than 5 seconds.

- Sensor: Uncooled 384x288 microbolometer, 25 microns
- Spectral: 8-12 microns
- Field of View 5.6°x11.7°
- Digital zoom: 2x or 4x
- Focus Range: 5m to Infinity
- Range to detect human activity: up to 900m
- Power: 4 x AA Batteries / Rechargeable NiMH
- Continuous Operation: Up to 7 hours (Lithium batteries +20°C)
- Dimensions: 254L x 75W x 72H
- Weight: Less than 1 kg

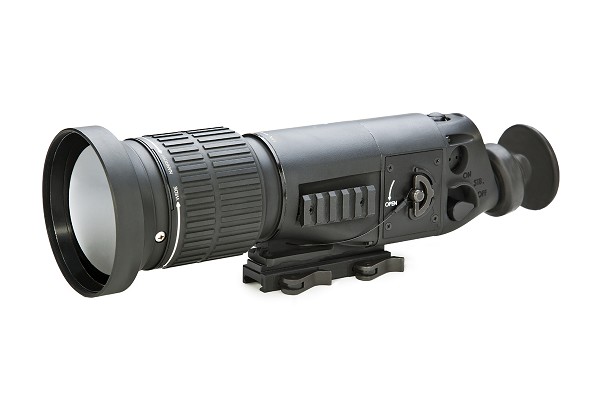

MEPRO NOA Dual-Field

NOA DUAL FIELD is an Uncooled Thermal Weapon Sight functioning as a target acquisition system incorporating an integrated ballistic
computer. It enables snipers to detect a human target over 1.5 km in variable weather conditions and very limited light availability or
total darkness significantly enhancing their survivability and lethality. It is based on Uncooled LWIR 25 micron, micro bolometer detector
that utilizes the 8-12 microns spectral range.

NOA DUAL-FIELD also contains an internal flash memory for data storage. It is operated
using internal batteries power or a special external cable (optional). NOA DUAL-FIELD is equipped with a cutting-edge Fire Control
System (FCS), featuring automatic ballistic compensation based on range and type of weapon and ammunition, among others.

Additional features include leveling indicator, Laser Range Finder interface for automatic target range acquisition and the ability to
upload and download data.NOA DUAL-FIELD enable real-time video recording, as well as integrated capturing and storage of still images.

- Magnification: 7X and 3X Optical Zoom, 2X and 4X Digital Zoom
- FOV: 3.4° x 2.6° (narrow) and 10.2° x7.7° (wide)
- Power; 8 x AA Batteries
- Recognition Range: NFOV 1300m, WFOV 400m
- Dimensions: 360L x 125W x 116H
- Weight: Less than 2.2 kg

MEPRO NOA 7x Un-Cooled Thermal Weapon Sight



Meprolight rose to the challenge posed by Special Forces and designed MEPRO NOA – the state-of-the-art thermal weapon
sight which includes the innovative characteristics of a mission computer, and also functions as a surveillance device and
intelligence tool. The MEPRO NOA is a fully operational unit, ready for use today!

MEPRO NOA enables commandos to acquire and engage targets at longer ranges, with 7x magnification. Its thermal capability
allows the sniper to detect static targets even behind camouflage, battlefield obscurants, adverse weather and total darkness.
Since It operates silently and emits no heat or RF energy, its use cannot be detected.

MEPRO NOA takes sniping into the next generation, offering advanced capabilities such as interfacing with external information
sources like a laser rangefinder, GPS and other devices, and allows 2-way communication with an external computer for
downloading images from the field or uploading images to the sniper. User can choose distance to the target, with alterations
automatically changing ballistics for better aiming. The MEPRO NOA thermal weapon sight is operated by batteries but can
also be connected by AC/DC to a vehicle for more convenience. All settings are handily activated by the user in the field with an
easy-to-operate joystick.

Advantages

- Detects human targets up to 1500 meters away
- Un-cooled system for silent operation and high reliability
- High resolution state-of-the-art sensor for thermal vision.
- Fire Control System – electronic reticle adjustment for range and ammunition ballistics
- Advanced controller with the capability to create moving reticles, perform target programming or call- up digital maps for
  use in mission planning.
- Completely integrated fire control system (FCS) can receive target distance manually or from an external range finder and
   move the reticle (Super Elevation) as a function of the range and specific ammunition ballistics.
- Advanced picture processing
- Low-consumption electronics – operates 10 hours on standard batteries: 8 x AA
- Low weight, rugged and compact
- USB interface for 2-way communication with external computer, GPS and other devices.
- Spectral sensitivity: 8-12 microns
- Pixel size: 25 micron-meter
- Magnification: 7X Optical Zoom and 2 X Digital Zoom
- FOV: 3.5° x 2.6°
- Recognition Range: 1300m
- Dimensions: 362L x 117W x 127H
- Weight: Less than 2.2 kg

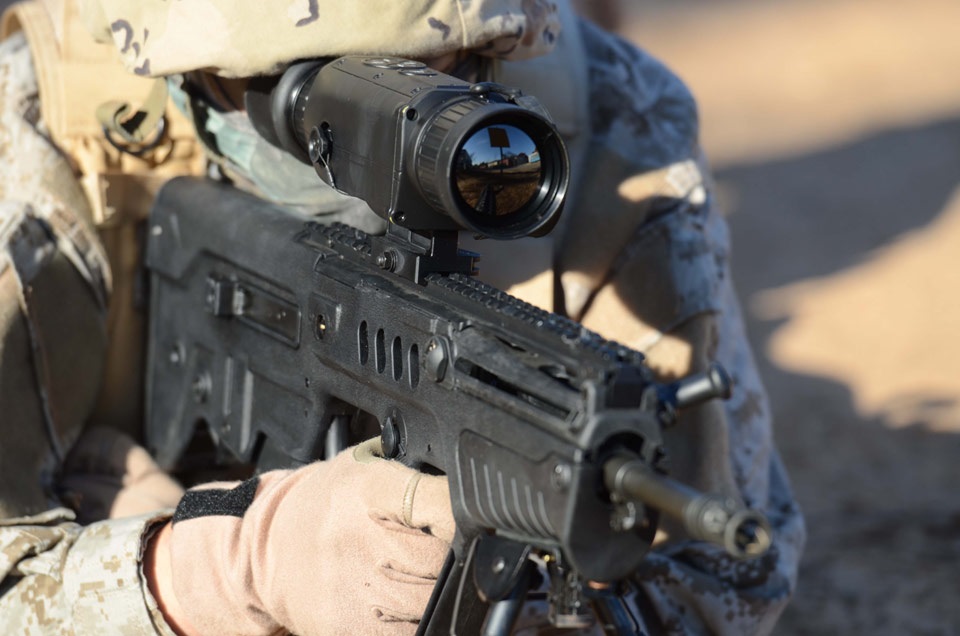

MEPRO NOA 4x Un-Cooled Thermal Weapon Sight



Meprolight rose to the challenge posed by Special Forces and designed MEPRO NOA – the state-of-the-art thermal weapon
sight which includes the innovative characteristics of a mission computer, and also functions as a surveillance device and
intelligence tool. The MEPRO NOA is a fully operational unit, ready for use today!

MEPRO NOA enables commandos to acquire and engage targets at longer ranges, with X4 magnification. Its thermal capability
allows the sniper to detect static targets even behind camouflage, battlefield obscurants, adverse weather and total darkness.
Since It operates silently and emits no heat or RF energy, its use cannot be detected.

MEPRO NOA takes sniping into the next generation, offering advanced capabilities such as interfacing with external information
sources like a laser rangefinder, GPS and other devices, and allows 2-way communication with an external computer for
downloading images from the field or uploading images to the sniper. User can choose distance to the target, with alterations
automatically changing ballistics for better aiming. The MEPRO NOA thermal weapon sight is operated by batteries but can also
be connected by AC/DC to a vehicle for more convenience. All settings are handily activated by the user in the field with an
easy-to-operate joystick.

Advantages
- Detects human targets up to 850 meters away
- Un-cooled system for silent operation and high reliability
- High resolution state-of-the-art sensor for thermal vision.
- Fire Control System – electronic reticle adjustment for range and ammunition ballistics
- Advanced controller with the capability to create moving reticles, perform target programming or call- up digital maps for use
  in mission planning.
- Completely integrated fire control system (FCS) can receive target distance manually or from an external range finder and move
  the reticle (Super Elevation) as a function of the range and specific ammunition ballistics.
- Advanced picture processing
- Low-consumption electronics – operates 10 hours on standard batteries
- Low weight, rugged and compact
- USB interface for 2-way communication with external computer, GPS and other devices.
- Spectral sensitivity: 8-12 microns
- Pixel size: 25 micron-meter
- Magnification: 4X Optical Zoom and 2 X Digital Zoom
- FOV: 6.1° x 4.6°
- Recognition Range: 850m
- Dimensions: 352L x 83W x 107H
- Weight: Less than 1.8 kg


NOA XT4 CLIP-ON - Converts the user’s combat 4x riflescope into a Thermal Weapon 4x Sight



The NOA XT4 is the newest member of the Uncooled Thermal Weapon sights family. Compact and lightweight, the dual-use Thermal
Weapon/Surveillance clip-on is designed for the dismounted soldier - enhancing the soldier's tactical action by providing easy thermal
clip-on for mounting in-line with a 4x day magnifier or used as a handheld viewer. In a matter of seconds, the MIL-STD NOA XT4
converts the user’s combat 4x riflescope into a Thermal Weapon 4x Sight.

The NOA XT4 instantly provides the user with a Thermal Sight picture without change in eye relief or weapon zero, allowing engagement
of targets through darkness, smoke, or fog. Because the user’s Daytime optic is unchanged, the sight's settings and reticles remain identical.
Extremely rugged and shock-proof, the NOA XT4 mounts directly on a forward Picatinny rail. The flexible battery chamber utilizes AA or
CR123 batteries, according to user requirements in the field. Providing continuous operation of more than 7 hours, the sight includes a motion
sensor for automatic sleep mode. The solution delivers 1x magnification when working with 4x magnifier and 2x or 4x electronic zoom when
operating as a thermal viewer.

- Sensor: Uncooled 384x288 microbolometer, 25 microns
- Spectral: 8-12 microns
- Field of View 8° in line, 15° Stand-Alone
- Focus Range: 5m to Infinity
- Range to detect human activity: up to 700m
- Display type: OLED (SVGA) Display resolution 768 x 576
- Power: 4 x AA Batteries / 4 x C123 (also optional 2 xC123)
- Continuous Operation: Up to 7 hours
- Temperature: -40°C to +60°C
- MIL-STD-810F
