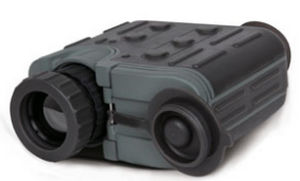

Thermal Imaging Monocular


-384×288 uncooled FPA detector
-One-hand operation,
-Carrying light
-Monocular OLED display
-Good cost performance


Detector characteristics 　Detector type 　Amorphous Silicon mirco-bolometer
　Array size/format 　384×288
　Image manage 　Field of view/min focus 　distance 　30.5°×22.9° or 14.8°×11.1°
　Spatial resolutions(IFOV) 　1.38mrad or 0.67mrad
　Netd 　≤0.06°@30°
　Frame rate 　50/60HZ
　Focus 　Manual electronic focus
　Spectral range 　8～14μm
　Image display 　Display 　Monocular OLED display(800×600)
　Thermal image adjust 　Brightness/Gain 　adjustment 　Automatic/Manual

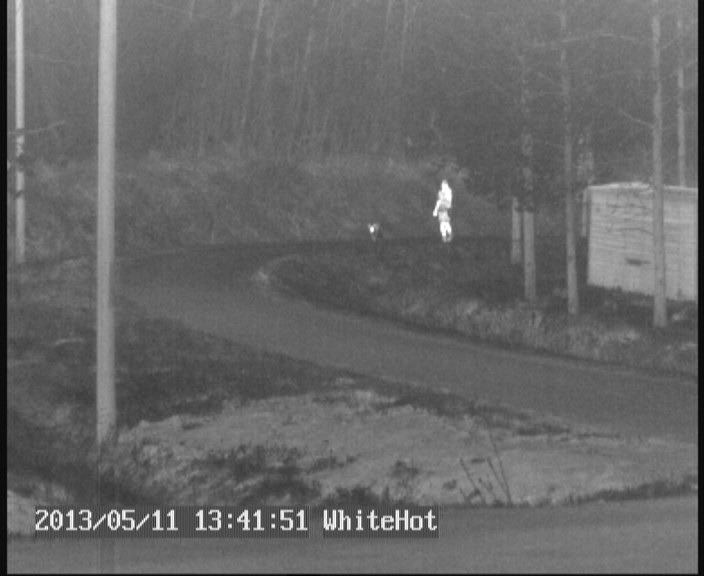

　Image polarity 　Hot black/hot white
　Electronic zoom 　2X
　Noise reduction 　Yes
　Image enhancement 　Yes
　Calibration 　Auto/manual
　Crosshair 　On/off

　Image storage

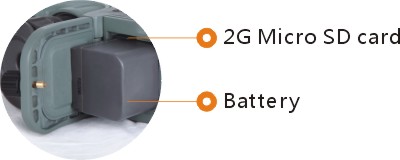

 　Storage card 　2G TF card
　File format 　picture or video
　Power supply 　Battery type 　Li-Ion, rechargeable
　Battery operating time 　More than 3hours continuous operation
　Charging system 　Intelligent charger
　Extermal power 　10～15V DC
　Power consumption 　≤4.5W(Normal operating at 25℃ )　
　Environment 　Operating temperature 　-20℃～+50℃
　Storage temperature 　-45℃～+70℃
　Physical 　characteristics 　Weight 　≤950g(With battery)
　Dimensious 　139mm×64mm×172mm
　Interface 　Extermal DC input 　Yes
　Video output 　PAL
　USB 　Image measurement data transfer to PC




                      Works properly after 1.8m drop test
