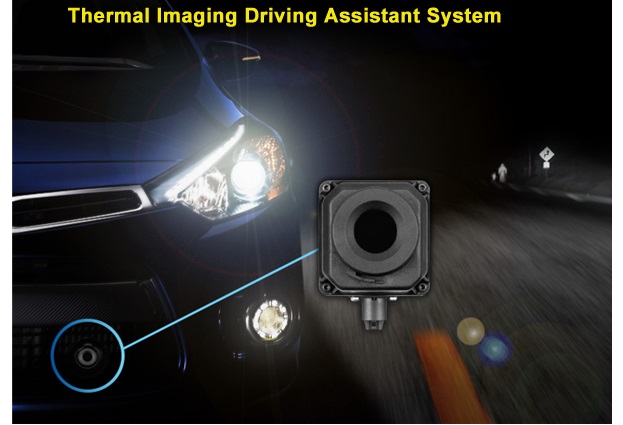

Thermal Imaging Detector(Sensor)
Sensor Type: 400X300 Uncooled Microbolometer
Spectral Band: 8-14 microns (LWIR)
Optical
Lens focus 19mm
Field-of-View 28x21 (PAL), 27X18 (NTSC)
Image presentation
Video output 50HZ PAL or 60HZ NTSC
Adjust Auto brightness and contrast adjustment
Image calibration Auto calibration without shutter

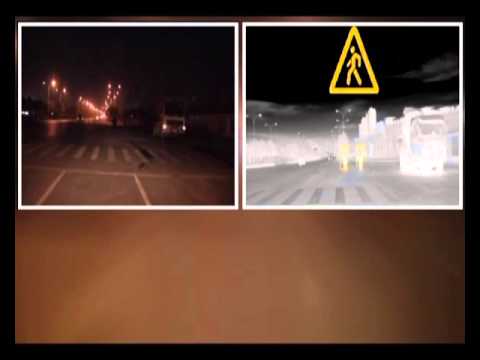

Image recognition Auto pedestrian recognition
Alarm Auto
Video output format CVBS
System performance
Start up time ≤ 8s
Defroster
≤2℃ activate defroster automatically
@-30℃ deice 1mm ice within 15m
≤7℃ close defroster automatically
Power
Power requirement DC 7-36V
Power dissipation
≤3.5W
Interfaces
Command and control RS232
Video output interface Single-end/difference
Environmental
Operating temp. -40℃ to 70℃
Storage temp. -45℃ to 85℃
Rating IP67
HD Screen
Size 8 inches 4: 3 digital screen
Resolution 1024 * 768
Refresh rate 60-75HZ
Signal input interface VGA / AV / BNC optional
Video format PAL/NTSC
Power DC 12V
Effective range
Target Human (1.8x0.5m) Vehicle (2.3x2.3m)
Detection range 60 1200m
Recognition range 140m 360m
Parempi resoluutio ja huomattavasti halvempi kuin FLIR PathFindIR II
